Lagernummer: 2077-20030
Technical data
| Flat disc diameter 1250 mm | |
| Circumferential diameter 1400 mm | |
| Turning height 1375 mm | |
| Workpiece weight 8 tonnes | |
| More information on the product page |
Description of the
Flat disc diameter 1250 mm
Circumferential diameter 1400 mm
Turning height 1375 mm
Workpiece weight 8 tonnes
Crossbeam adjustment 800 mm
Chisel path 700
Swivelling angle max. 45 +/- degrees
Speed 6.3 - 315 rpm
Total power requirement 51 kW
Machine weight approx. 13 tonnes
Space requirement approx. 3.4 x 5.8 x 4.5 m

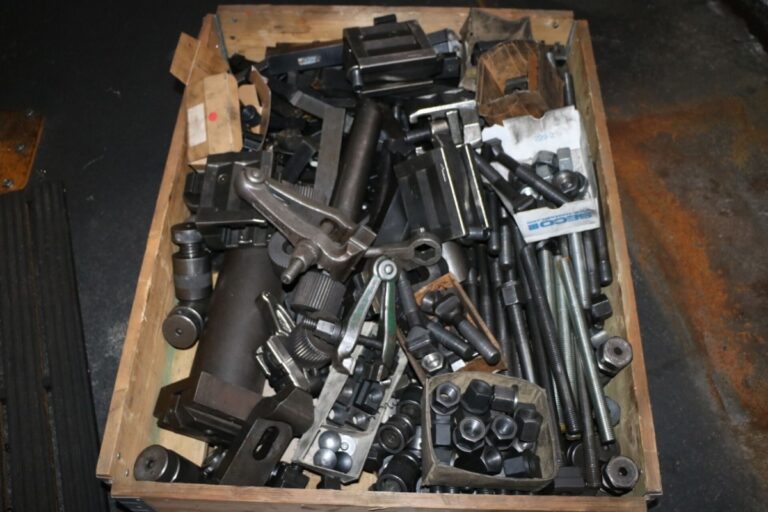

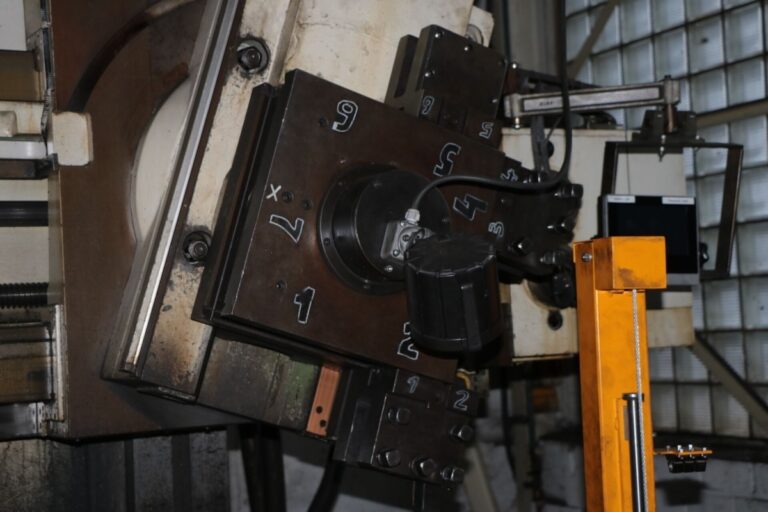

Turning height at ø800mm: 1750mm Smallest plunge diameter of the chisel slide 580mm Tool turret with 7 positions incl. accessories
Circumferential diameter 1400 mm
Turning height 1375 mm
Workpiece weight 8 tonnes
Crossbeam adjustment 800 mm
Chisel path 700
Swivelling angle max. 45 +/- degrees
Speed 6.3 - 315 rpm
Total power requirement 51 kW
Machine weight approx. 13 tonnes
Space requirement approx. 3.4 x 5.8 x 4.5 m
Turning height at ø800mm: 1750mm Smallest plunge diameter of the chisel slide 580mm Tool turret with 7 positions incl. accessories
